8  第11章

pacman::p_load(psych, GPArotation, tidyverse, readxl, gt, gtExtras, dendextend, cluster, factoextra, useful, ggrepel)

# コード11-1
# install.packages("psych")
# install.packages("GPArotation")

# コード11-2
factor_exdata <- readxl::read_excel("data/factor_ex.xlsx", na = ".")

factor_exdata$V5 <- 8 - factor_exdata$V5
rownames(factor_exdata) <- factor_exdata$ID

factor_exdata2 <- factor_exdata %>%
  select(-ID)
knitr::kable(summary(factor_exdata2))
V1 V2 V3 V4 V5 V6
Min. :1.000 Min. :2.0 Min. :1.0 Min. :2.0 Min. :1.0 Min. :2.000
1st Qu.:2.000 1st Qu.:3.0 1st Qu.:2.0 1st Qu.:3.0 1st Qu.:3.0 1st Qu.:3.000
Median :4.000 Median :4.0 Median :4.0 Median :4.0 Median :4.5 Median :4.000
Mean :3.933 Mean :3.9 Mean :4.1 Mean :4.1 Mean :4.5 Mean :4.167
3rd Qu.:6.000 3rd Qu.:5.0 3rd Qu.:6.0 3rd Qu.:5.0 3rd Qu.:6.0 3rd Qu.:4.750
Max. :7.000 Max. :7.0 Max. :7.0 Max. :7.0 Max. :7.0 Max. :7.000
# コード11-3
knitr::kable(cor(factor_exdata2), caption = "相関行列")
相関行列
V1 V2 V3 V4 V5 V6
V1 1.0000000 -0.0532178 0.8730902 -0.0861622 0.8576366 0.0041681
V2 -0.0532178 1.0000000 -0.1550200 0.5722121 -0.0197456 0.6404649
V3 0.8730902 -0.1550200 1.0000000 -0.2477879 0.7778480 -0.0180688
V4 -0.0861622 0.5722121 -0.2477879 1.0000000 0.0065819 0.6404649
V5 0.8576366 -0.0197456 0.7778480 0.0065819 1.0000000 0.1364029
V6 0.0041681 0.6404649 -0.0180688 0.6404649 0.1364029 1.0000000
# コード11-4
cor.exdata <- cor(factor_exdata2)

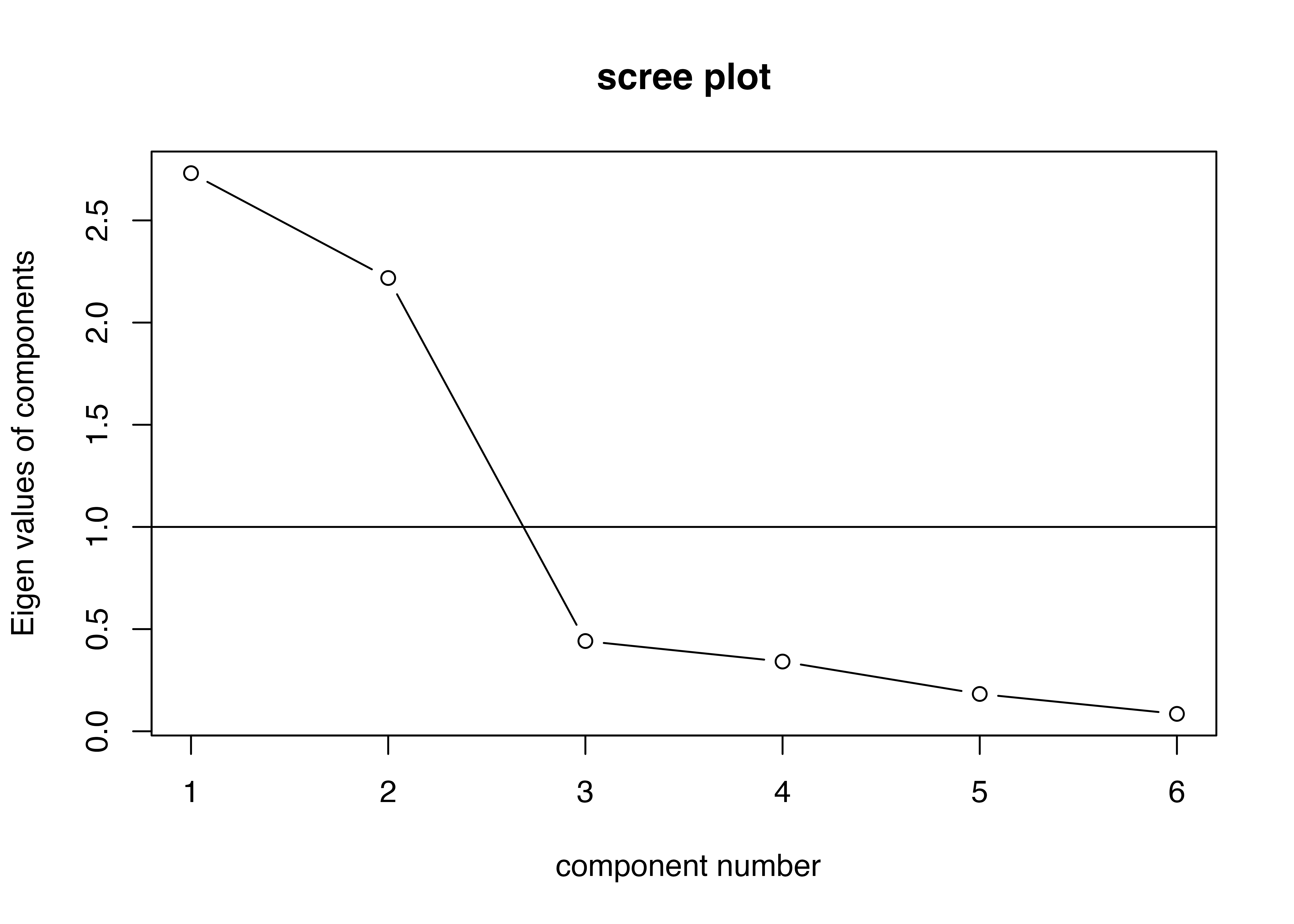

VSS.scree(cor.exdata)

# コード11-5
fa <- fa(r = factor_exdata2, nfactors = 2,
  rotate = "promax", fm = "ml")
fa
Factor Analysis using method =  ml
Call: fa(r = factor_exdata2, nfactors = 2, rotate = "promax", fm = "ml")
Standardized loadings (pattern matrix) based upon correlation matrix
     ML1   ML2   h2    u2 com
V1  0.97  0.00 0.94 0.063   1
V2 -0.02  0.75 0.56 0.437   1
V3  0.89 -0.12 0.83 0.174   1
V4 -0.06  0.78 0.62 0.378   1
V5  0.89  0.11 0.79 0.205   1
V6  0.08  0.83 0.69 0.309   1

                       ML1  ML2
SS loadings           2.54 1.89
Proportion Var        0.42 0.32
Cumulative Var        0.42 0.74
Proportion Explained  0.57 0.43
Cumulative Proportion 0.57 1.00

 With factor correlations of
      ML1   ML2
ML1  1.00 -0.06
ML2 -0.06  1.00

Mean item complexity =  1
Test of the hypothesis that 2 factors are sufficient.

df null model =  15  with the objective function =  4.25 with Chi Square =  111.31
df of  the model are 4  and the objective function was  0.21

The root mean square of the residuals (RMSR) is  0.03
The df corrected root mean square of the residuals is  0.05

The harmonic n.obs is  30 with the empirical chi square  0.65  with prob <  0.96
The total n.obs was  30  with Likelihood Chi Square =  5.21  with prob <  0.27

Tucker Lewis Index of factoring reliability =  0.95
RMSEA index =  0.095  and the 90 % confidence intervals are  0 0.314
BIC =  -8.39
Fit based upon off diagonal values = 1
Measures of factor score adequacy
                                                   ML1  ML2
Correlation of (regression) scores with factors   0.98 0.92
Multiple R square of scores with factors          0.96 0.84
Minimum correlation of possible factor scores     0.92 0.68
# コード11-6

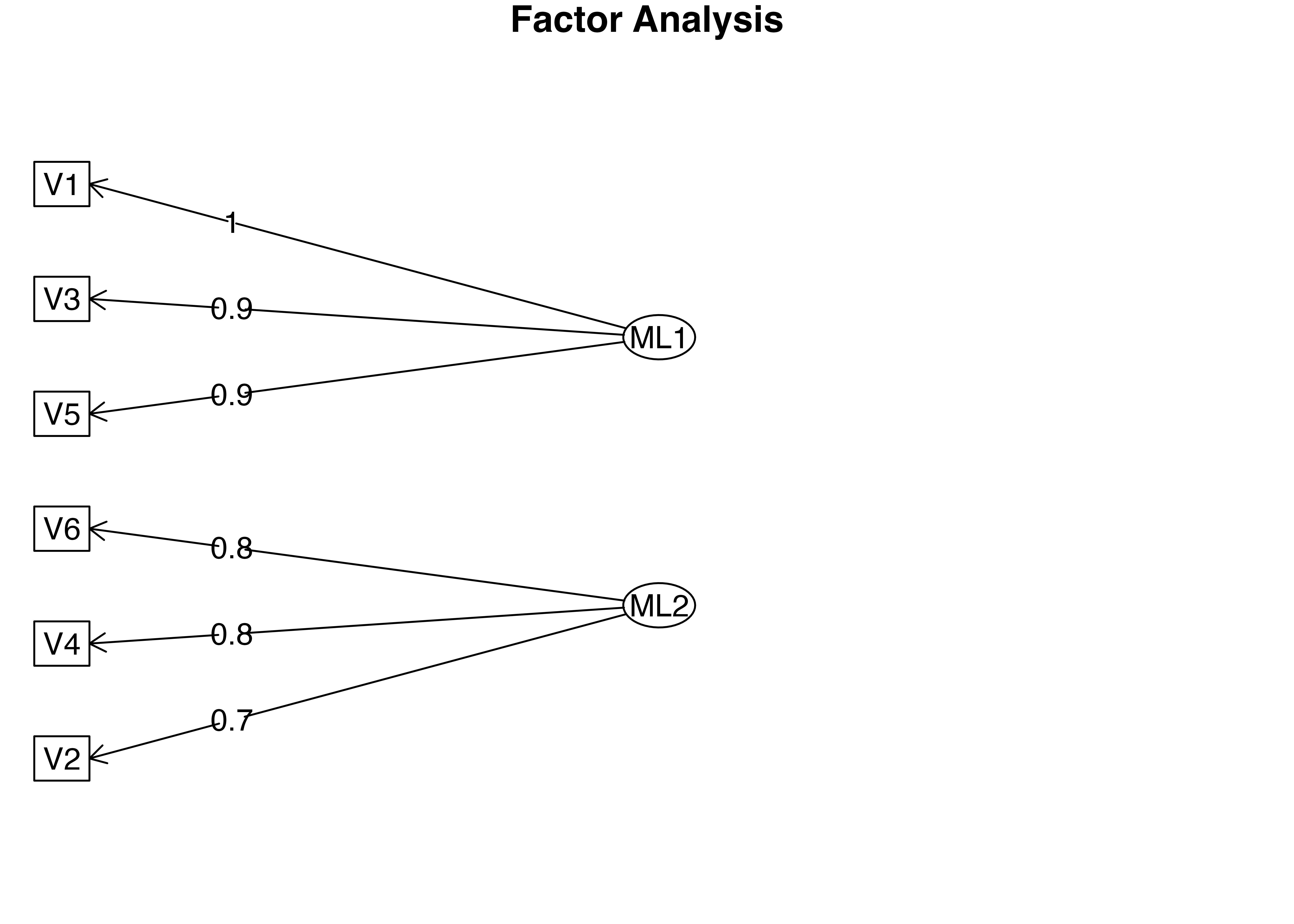

fa.diagram(fa)

# コード11-7
fs <- data.frame(fa$scores)
factor_exdata2$rowname <- rownames(factor_exdata2)
fs$rowname <- rownames(fs)
factor_exdata2 <- left_join(factor_exdata2, fs, by = "rowname")
knitr::kable(head(factor_exdata2), caption = "結合後データ")
結合後データ
V1 V2 V3 V4 V5 V6 rowname ML1 ML2
7 3 6 4 6 4 1 1.3106155 -0.2896470
1 3 2 4 3 4 2 -1.2878038 -0.2073067
6 2 7 4 7 3 3 1.1828544 -0.7996332
4 5 4 6 6 5 4 0.1474225 1.0035837
1 2 2 3 2 2 5 -1.3907544 -1.3067260
6 3 6 4 6 4 6 0.9928111 -0.2875982
# コード11-8

ex_cluster <- factor_exdata2 %>%
  select(ML1, ML2)
Hier1 <- agnes(ex_cluster, metric = "euclidian", stand = TRUE)

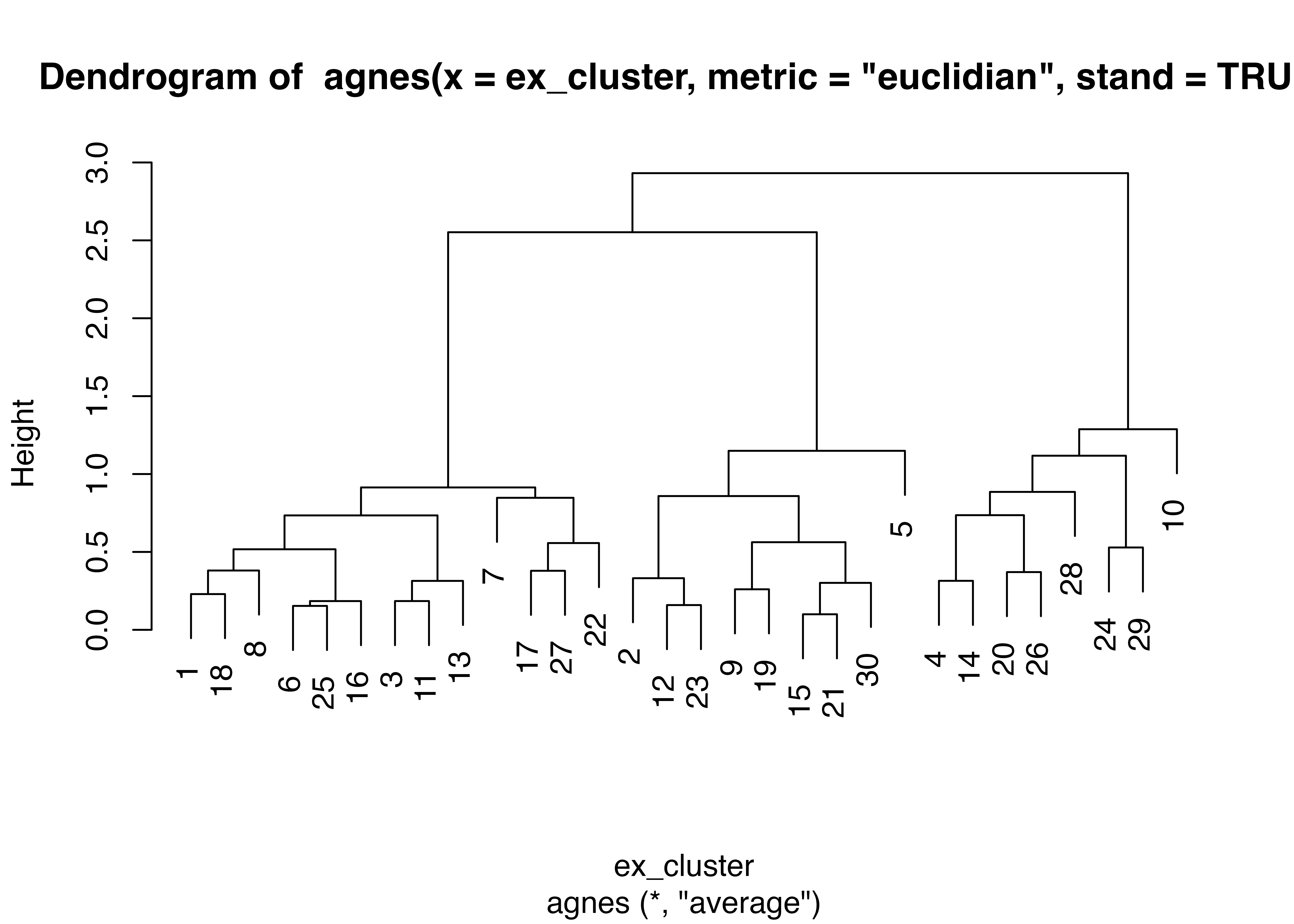

pltree(Hier1)

# コード11-9
cl_1 <- kmeans(ex_cluster, 3)
clus_fa <- data.frame(cl_1$cluster)
clus_fa$rowname <- rownames(clus_fa)
factor_exdata2 <- left_join(factor_exdata2, clus_fa, by = "rowname")
factor_exdata2$cl_1.cluster <- factor(factor_exdata2$cl_1.cluster)

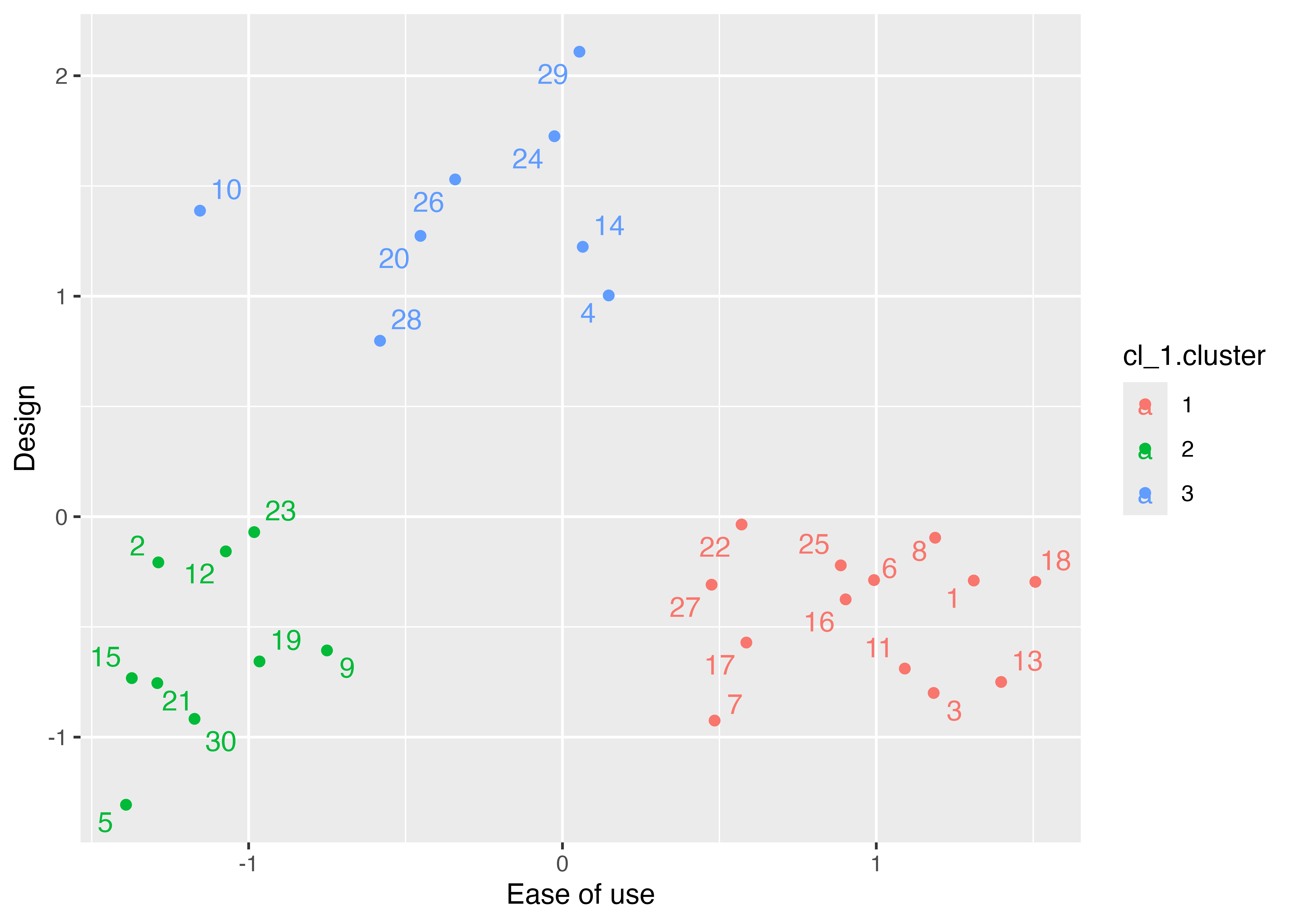

# Visualizing the clusters with 2 factors
p1 <- ggplot(data = factor_exdata2,
             mapping = aes(x = ML1, y = ML2, color = cl_1.cluster))
p1 + geom_point() +
  geom_text_repel(mapping = aes(label = rownames(factor_exdata2))) +
  labs(x = "Ease of use", y = "Design")

# コード11-10
factor_exdata3 <- factor_exdata %>%
  select(-ID)
pca_res <- pca(factor_exdata3, nfactors = 2, rotate = "none")
pca_res
Principal Components Analysis
Call: principal(r = r, nfactors = nfactors, residuals = residuals,
    rotate = rotate, n.obs = n.obs, covar = covar, scores = scores,
    missing = missing, impute = impute, oblique.scores = oblique.scores,
    method = method, use = use, cor = cor, correct = 0.5, weight = NULL)
Standardized loadings (pattern matrix) based upon correlation matrix
     PC1  PC2   h2    u2 com
V1  0.93 0.25 0.93 0.074 1.1
V2 -0.30 0.80 0.72 0.277 1.3
V3  0.94 0.13 0.89 0.106 1.0
V4 -0.34 0.79 0.74 0.261 1.4
V5  0.87 0.35 0.88 0.122 1.3
V6 -0.18 0.87 0.79 0.210 1.1

                       PC1  PC2
SS loadings           2.73 2.22
Proportion Var        0.46 0.37
Cumulative Var        0.46 0.82
Proportion Explained  0.55 0.45
Cumulative Proportion 0.55 1.00

Mean item complexity =  1.2
Test of the hypothesis that 2 components are sufficient.

The root mean square of the residuals (RMSR) is  0.07
 with the empirical chi square  3.94  with prob <  0.41

Fit based upon off diagonal values = 0.98
# コード11-11
# データの相関行列から固有値と固有ベクトルを抽出
cor_ex <- cor(factor_exdata3)
eigen_list <- eigen(cor_ex)

# 固有ベクトルについての情報をオブジェクトとして定義
pc1_eig <- eigen_list$vectors[, 1]
pc2_eig <- eigen_list$vectors[, 2]

# 固有ベクトルに，固有値の平方根を乗じる
PC1 <- pc1_eig * sqrt(eigen_list$values[1])
PC2 <- pc2_eig * sqrt(eigen_list$values[2])
knitr::kable(data.frame(cbind(PC1, PC2)), caption = "計算結果")
計算結果
PC1 PC2
0.9283425 -0.2532285
-0.3005297 -0.7952496
0.9361812 -0.1308894
-0.3415817 -0.7889663
0.8687553 -0.3507939
-0.1766389 -0.8711581
